Technical Details
Energy Savings
Işıklar Thermal Insulation Systems prevent the hot air outside from entering and the cool air inside from escaping during summer. In winter, they keep the cold air out and the warm air inside, thereby reduce the amount of energy needed for heating and cooling. This leads to significant energy saving in buildings.
Aesthetic Appearance
Işıklar clinker cladding bricks applied over the Işıklar thermal insulation panels offer a variety of alternative colors and textures, providing an aesthetic look to building facades. The different color and texture options of Işıklar cladding bricks not only create aesthetically pleasing facades but also meet architectural expectations.
The Işıklar cladding bricks used as the top layer of the system are made from natural raw materials. They are resistant to frost, rain, and all kinds of weather conditions, ensuring long-lasting use throughout the building’s lifespan.
The Işıklar cladding bricks used as the top layer of the system are made from natural raw materials. They are resistant to frost, rain, and all kinds of weather conditions, ensuring long-lasting use throughout the building’s lifespan.
The system involves XPS insulation boards made suitable for installation by cutting channels that match the sizes of Işıklar cladding bricks. These healthy, safe, and lightweight exterior cladding systems have been tested on new buildings. The complete insulation systems, which are commercialized as a package, include channeled XPS, Işıklar clinker cladding bricks, Işıklar flex adhesive, Işıklar flex joint filler, and plastic dowels selected according to the wall type.
– 9m² insulation board
– XPS Dimensions: 60 x 1250 mm
– Thickness: 35-55-80 mm
Application Technique
Thermal insulation panel systems are applied to the exterior surfaces of load-bearing structural elements such as reinforced concrete walls, brick, aerated concrete, and columns and beams in both existing building facade renovations and new buildings. The system is installed to cover all thermal bridges, ensuring comprehensive insulation.

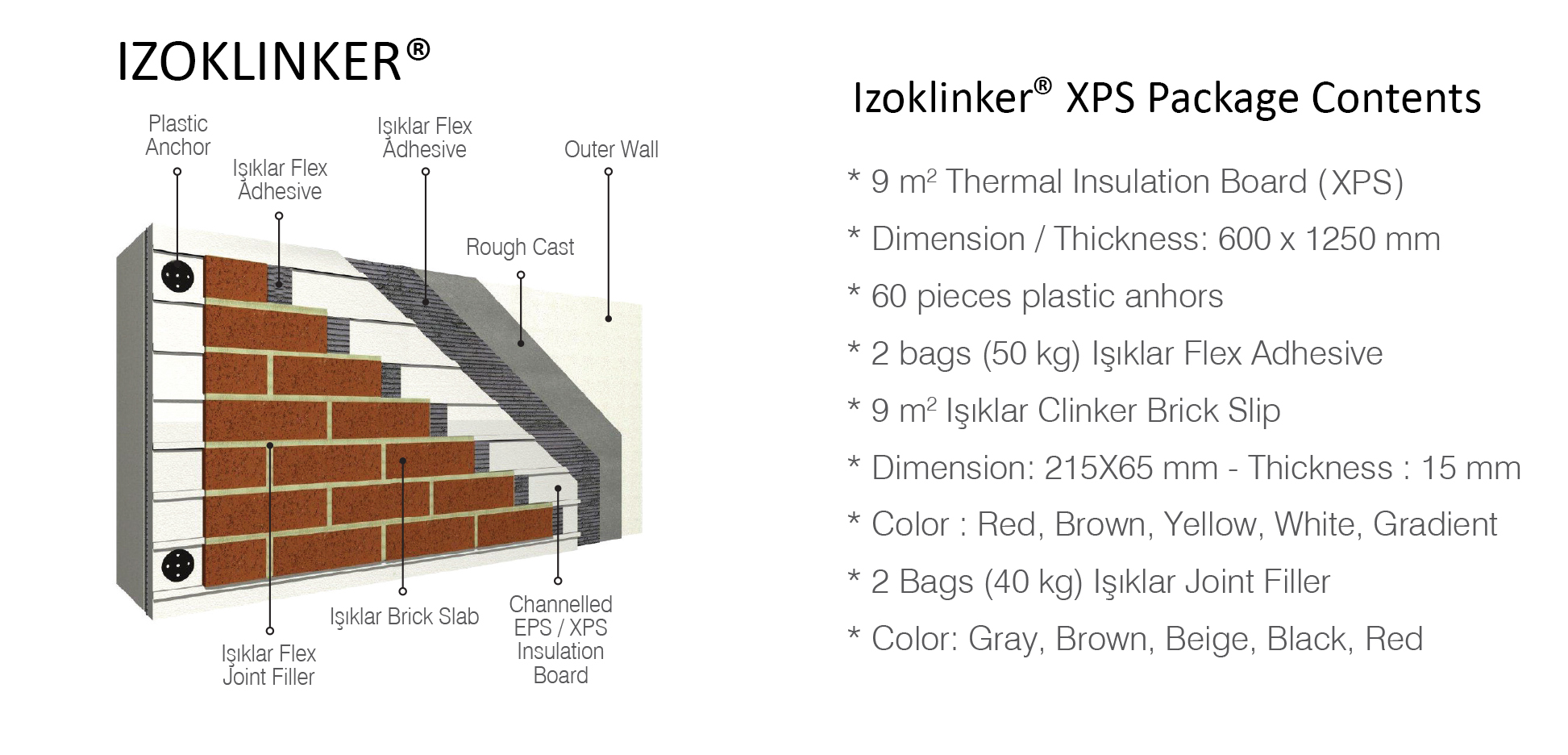

Izoklinker® Systems
9m² Insulation Board (XPS)
XPS Dimensions: 60 x 1250 mm
Thickness: 35-55-80 mm
60 Pieces Plastik Anhors
2 Bags (50kg) Isıklar Flex Adhesive
9m2 Isıklar Clinker Brick Slip (215x65x15 mm)
Color: Red, Brown, Yellow, White, Gredient
2 Bags (40kg) Isıklar Joint Filler
Color: Gray, Brown, Beige, Black, Red

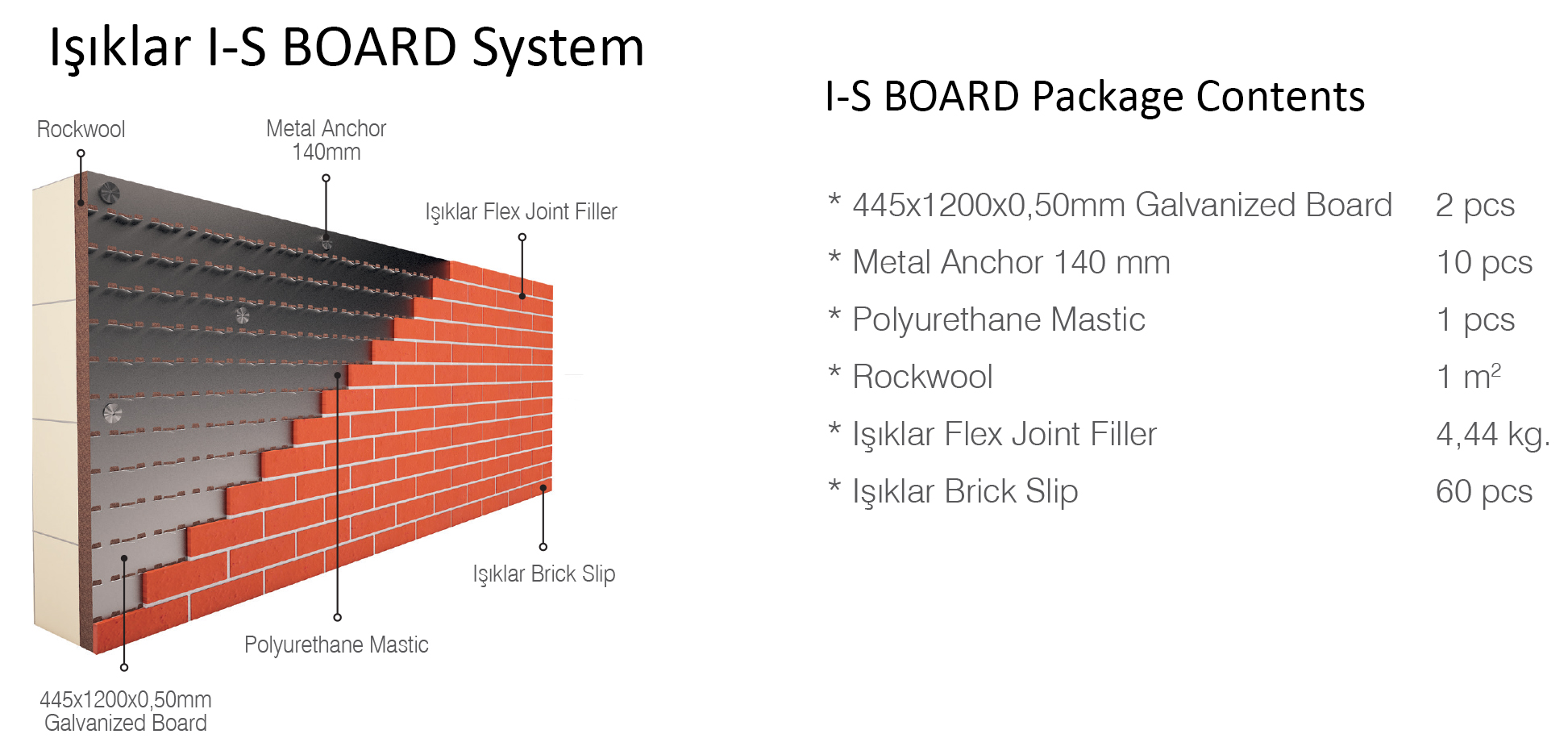

I-S Board Systems
445x1200x0,50mm Galvanized Board: 2 pcs
Metal Anchor140mm: 10 pcs
Polyurethane Mastic: 1 pcs
Rock Wall: 1m2
Isıklar Flex Joint Filler: 4.44 kg.
Isıklar Clinker Brick Slip (215x65x15 mm): 60 pcs
